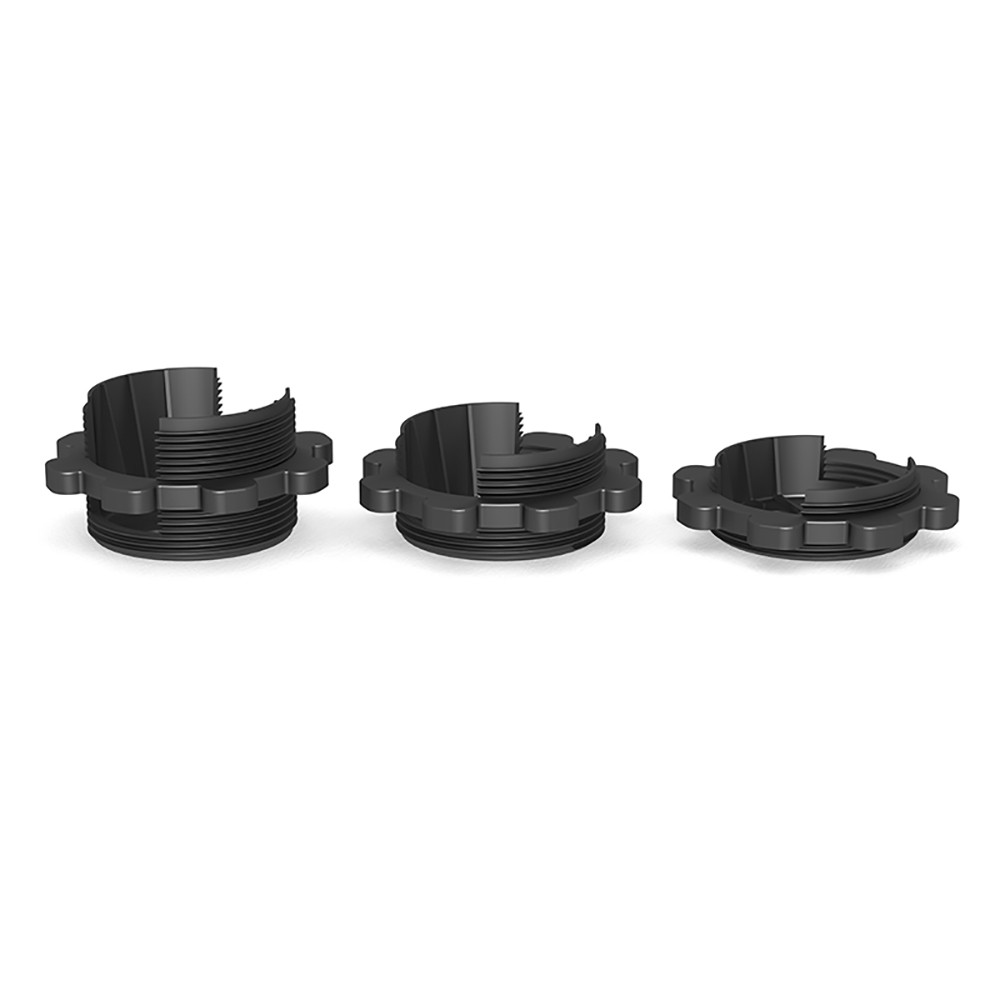

Roofing Superstore Adjustable Decking & Flooring Joist Cradle - 10 to 55mm

Name: Roofing Superstore Adjustable Decking & Flooring Joist Cradle - 10 to 55mm
Brand: Roofing Superstore
SKU: 52.1005
Price: 1.60 GBP
Availability: InStock
Rating: 4.7 (6 reviews)

Code:

52.1005

Brand:

Roofing Superstore

This self-levelling joist support system is perfect for levelling uneven floors and supporting roof decking. It is fully tested and conforms to the Loading Conditions for the Flooring as laid down in BS5399. Its unique design and buttress thread enable the cradle to carry high... Read More

View full product details

Ask a question about this product

£1.60 Incl. VAT

Earn points

Est. Delivery: 1-2 Working Days

Shipping costs displayed in basket.

For delivery Monday, Dec 30th - order in:

days hrs mins secs

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

View full product details

Ask a question about this product

Create a wishlist

J Dodson

Description

It is the ideal solution for supporting timber joists for decking purposes on balconies and roof terraces. The unique recycled plastic body is designed to support joists, keeping them off the roof deck and away from the roof drainage. The cradles can be adjusted to allow for the falls in the roof.

Features & Benefits: Roofing Superstore Adjustable Decking & Flooring Joist Cradle - 10 to 55mm

Ideal for decking and flooring installations
Self-Levelling
No packers required
Easy to install
90mm diameter x 65mm overall height
7kN/m² load capability
10mm to 40mm adjustability (greater height can be achieved using base plates)

This cradle can also be used on uneven and out-of-level floors. The design enables the soft-sprung feel of a timber floor to be achieved over concrete sub-bases. It allows for fast installation and removes the need for wet and slow drying times typically associated with cementitious screeds. The void created by the cradle can also be insulated or used for service runs. The system is suitable for use in fast-track building programs or conservatory floors.

This cradle acts purely as a loading support, so care should be taken when loading the cradle to ensure that the sub-base can accept the load. The table of load centres is for a standard joist size. The load can be distributed by increasing the number of cradles.

Please note:

This product has a flat base. The timber has to be 47mm or 2 inches wide, while the height can be whatever you require. The recommended coverage is one decking cradle every 400mm per timber run, dependent on load. This product will hold a 4" (100mm) x 2" (50mm) timber joist. Rubber Pads are sold separately.
